Description

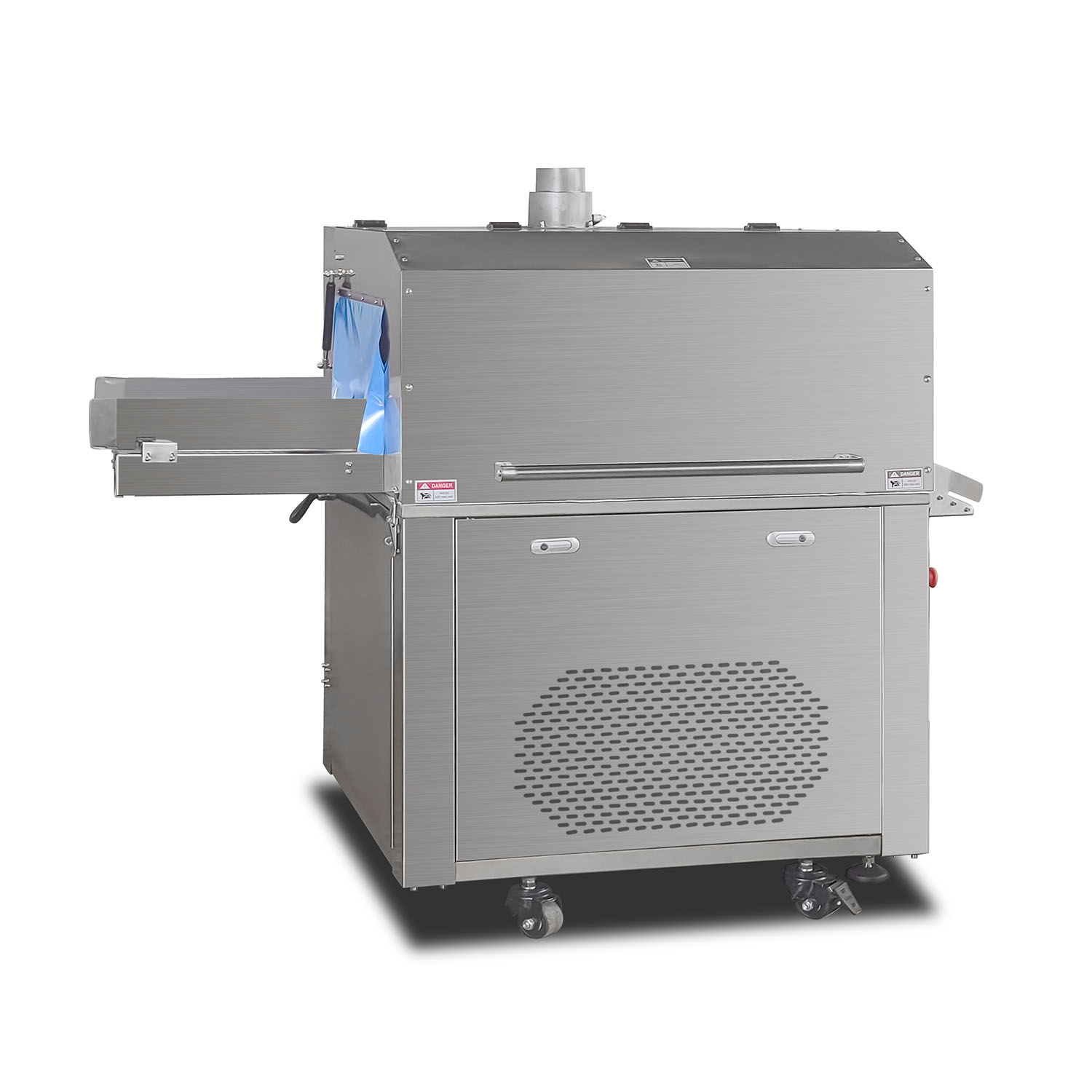

The ST-8031/10065 is a hot water shrink tunnel for higher-volume shrink packaging lines, evenly heating film around each pack for a tight, durable finish. Premium Schneider Electric components and a Siemens PLC system support sustained operation in demanding environments.
Schneider Electric Components
Uses premium Schneider Electric components to improve control stability, safety, and durability, ensuring reliable performance in demanding industrial operating conditions.
Siemens PLC System
Available with a German Siemens PLC control system, offering precise control, intelligent operation, and improved stability for demanding applications such as food factories, central kitchens, and large-scale production environments.
SEW Drive Motor
Available with a German SEW motor, delivering smooth operation, low noise, excellent durability, and reliable performance for automated packaging systems and high-end industrial applications.
304/316 Stainless Steel
Available in customizable 304 or 316 stainless steel construction. The robust material is designed to withstand high-moisture environments, providing enhanced corrosion resistance, durability, and longer equipment service life.

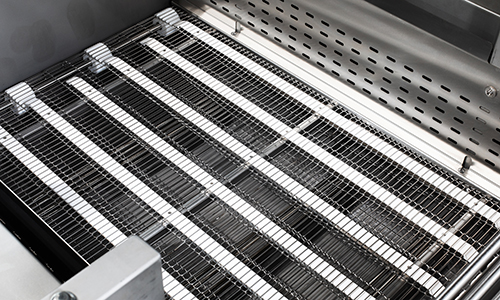

Immersion Hot Water Shrink Process
After vacuum sealing, packaged products are loaded onto the conveyor and automatically fed into the machine. The conveyor system lowers the products into the heated water tank for controlled shrink processing based on preset parameters.
When the shrinking cycle is complete, the lifting mechanism raises and transfers the products out automatically, improving packaging appearance, consistency, and production efficiency.

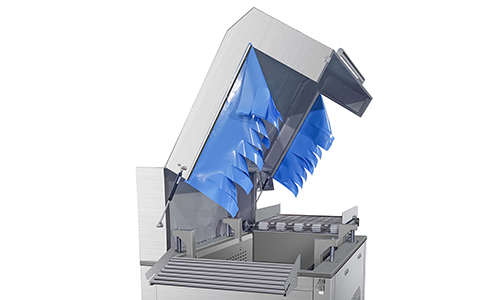

Openable Machine Body Design
The machine body features an openable design, providing convenient access for cleaning, inspection, and routine maintenance. Operators can easily open the structure to clean internal areas, remove residues, and check key components, reducing maintenance difficulty and saving service time.

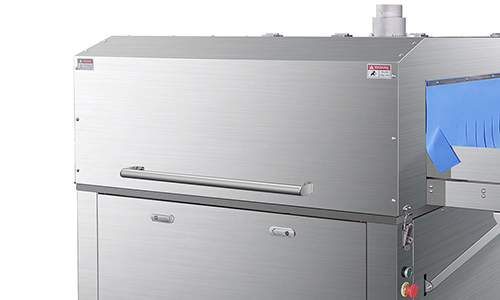

Full 304 Stainless Steel Construction
The entire machine body is made of high-quality 304 stainless steel, offering excellent corrosion resistance, durability, and easy cleaning performance. The stainless steel structure is suitable for food processing environments, helping meet high hygiene standards and ensuring reliable long-term use.
ST-8031/10065 Hot Water Shrink Tunnel — Model Selection & Technical Specifications
|
Model
|
 ST-8031
|
 ST-10065
|
|||
|---|---|---|---|---|---|
| Voltage | 3PH380V/50HZ | 3PH380V/50HZ | |||
| Power | 36kw(Heating3X7KW ，Pump0.4KW） 60A | 36kw(Heating3X12KW ，Pump0.4KW） 60A | |||
| Water tank size |
33.1 × 24.7 × 18.9 in
840 × 627 × 480 mm
|
40.9 × 32.5 × 19.7 in 1040 × 825 × 500 mm |
|||
| MAX Loading |
Max 66.1 lb
Max 30 kg
|
Max 66.1 lb
Max 50 kg
|
|||
| dip level |
Max 11.8 in
Max 300 mm
|
Max 11.8 in
Max 300 mm
|
|||
| Control | Auto/Manual function | Auto/Manual function | |||
| Dimension |
76.2 × 40.1 × 57.3 in
1935 × 1018 × 1455 mm
|
78.3 × 47.9 × 57.3 in 1988 × 1216 × 1455 mm |
|||
| Weight |
≈612.9 lb
≈278 kg
|
≈837.6 lb ≈380 kg |
|||
| Material | 304Stainless Steel | ||||
| Warranty | 1 Year | ||||
| Certification | CE | CE | |||
| Usage | Meat / Industrial | ||||
| Customization | Available OEM / ODM | ||||
