Description
iWarp and iWarp Pro are cling film wrapping machines for food retail and compatible commercial wrapping applications. Both models deliver a listed capacity of 10-15 packs per minute and use 0.8 kW power. Choose iWarp for smaller supported package formats and iWarp Pro for larger package and film-width ranges.
Siemens PLC Control System
Equipped with a German Siemens PLC control system, the machine delivers precise process control, intelligent parameter management, and reliable performance. It is ideal for demanding industrial applications requiring high operational stability and advanced automation.
Schneider Electric Components
Equipped with high-quality Schneider Electric components from France, the machine delivers reliable electrical control, enhanced operational safety, and long-lasting durability. Designed for demanding industrial environments, these components help ensure stable performance during continuous operation, reduce maintenance requirements, and support long-term equipment reliability.
German SEW Drive Motor
Equipped with a high-quality German SEW drive motor, the machine delivers stable power transmission, low-noise operation, and exceptional reliability. Designed for demanding industrial applications, it offers excellent durability and a long service life, ensuring consistent performance during continuous operation. Ideal for conveyor systems, automated packaging lines, and high-end industrial equipment.
Omron Temperature Control System
Equipped with a high-quality Japanese Omron temperature controller, ensuring precise temperature regulation and stable water temperature. Delivers consistent shrinkage results, reliable performance, and long-term durability during continuous industrial operation.
High-Performance Vacuum Pump
Standard 200 m³/h high-quality Chinese vacuum pump delivers powerful and stable vacuum performance. Custom pump configurations and international brands such as Busch are available upon request.
DZQ-800C Conveyor Vacuum Packaging Machine
1. Anti-Pinch Safety Protection
The vacuum lid automatically lifts when an obstruction is detected during closing, ensuring safer operation.
2. Automatic Bag Trimming
Automatically cuts excess bag material after sealing, creating neat edges and a professional packaging appearance.
3. Adjustable Conveyor Belt Tension
The adjustable tension system compensates for belt loosening over time, ensuring stable operation and easier belt replacement.
ST-10065 Hot Water Shrink Machine
1. Durable Stainless Steel Mesh Conveyor
Equipped with a high-strength stainless steel mesh conveyor belt, offering excellent corrosion resistance, durability, and stable performance in high-temperature, high-moisture environments.
2. Automatic Water Filling System
Automatically replenishes water to maintain the required operating level, reducing manual intervention and ensuring stable, continuous operation.
3. Water Purification System
Water Purification System helps reduce impurities and scale buildup, keeping the water cleaner, protecting internal components, and reducing maintenance requirements for long-term reliable operation.
FG-1554 Air-Blowing Dryer
1. High-Capacity 360 m³/h Blower
Equipped with a powerful 360 m³/h blower, delivering strong and consistent airflow to efficiently remove surface water from packaged products, improving drying efficiency.
2. Durable Stainless Steel Mesh Conveyor
Features a high-strength stainless steel mesh conveyor belt with excellent corrosion resistance and durability, ensuring smooth transportation and reliable performance during continuous industrial operation.
3. Infrared Automatic Height Adjustment
The infrared sensing system automatically adjusts the blowing height according to product size, maintaining an optimal airflow distance for more effective and consistent water removal across different package sizes.
Automated Packaging Line for Meat | DONGFENG — Model Selection & Technical Specifications
|
Model
|
 DZQ-800C
|
 DZQ-500
|
 DZQ-600
|
|---|---|---|---|
| Voltage | 3Phase 220/380V 50-60Hz | 110V/220V 50Hz-60Hz | 110V/220V 50Hz-60Hz |
| Power | 6kw | 0.9KW | 1.8kw |
| Pump Capacity | 20 m³/h (706.2 cft/h) |
20 m³/h
(706.3 cft/h) |
20 m³/h× 2pcs
(706.3 cft/h× 2pcs) |
| Sealing Length | 800×10 mm (31.5×0.4 in) |
500×10mm
(19.7 × 0.4 in) |
600×10 mm
(23.6 × 0.4 in) |
| Cycle time | 20-40 seconds | 10-30 seconds | 10-30 seconds |
| Machine Size | 490×540×945 mm (19.3×21.3×37.2 in) |
585×650×970mm
(23.0 × 25.6 × 38.2 in) |
740×710×975 mm
(29.1 × 28.0 × 38.4 in) |
| Vacuum Chamber Size | 435×420×75 mm (17.1×16.5×3.0 in) |
530×530×75mm
(20.9 × 20.9 × 3.0 in) |
630×626×95 mm
(24.8 × 24.6 × 3.7 in) |
| Weight | ≈80 kg (≈176.4 lb) |
≈105kg
(≈231.5 lb) |
≈145 kg
(≈ 319.7 lb) |
| Material | Stainless Steel | ||
| Vacuum Level | -0.1MPa | ||
| Warranty | 1 Year | ||
| Certification | CE / ISO | ||
| Usage | Food / Industrial / Electronics Packaging | ||
| Customization | Available OEM / ODM | ||

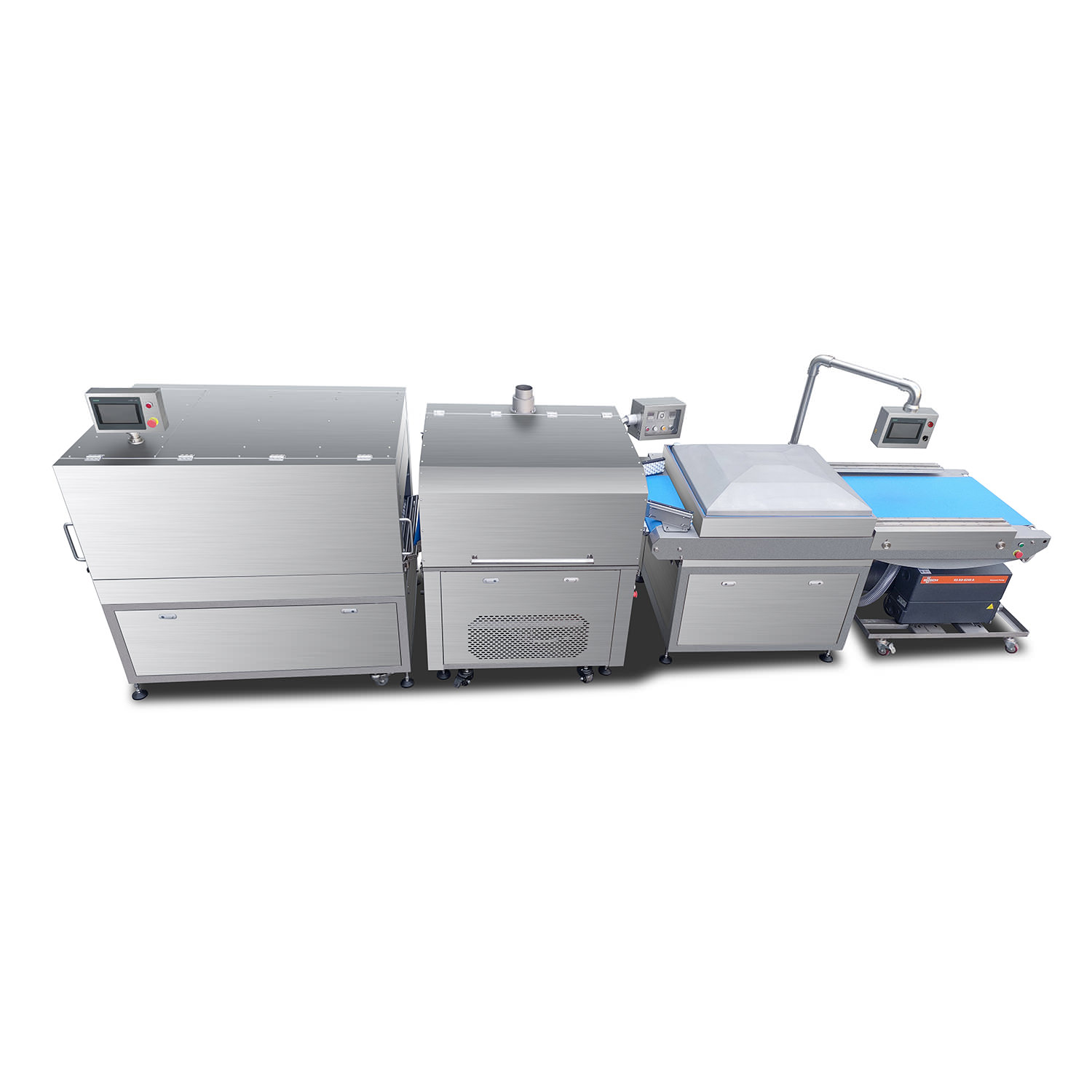

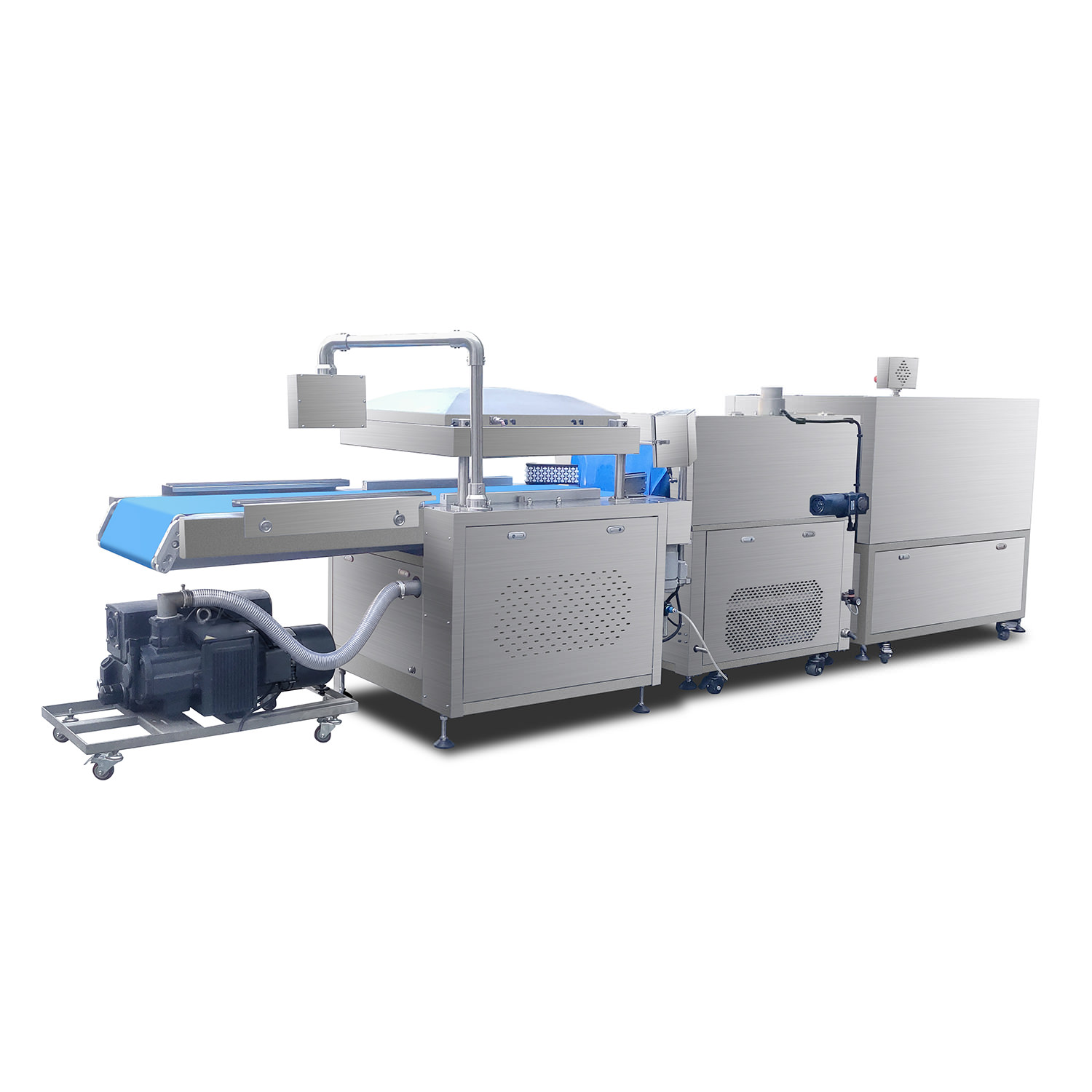

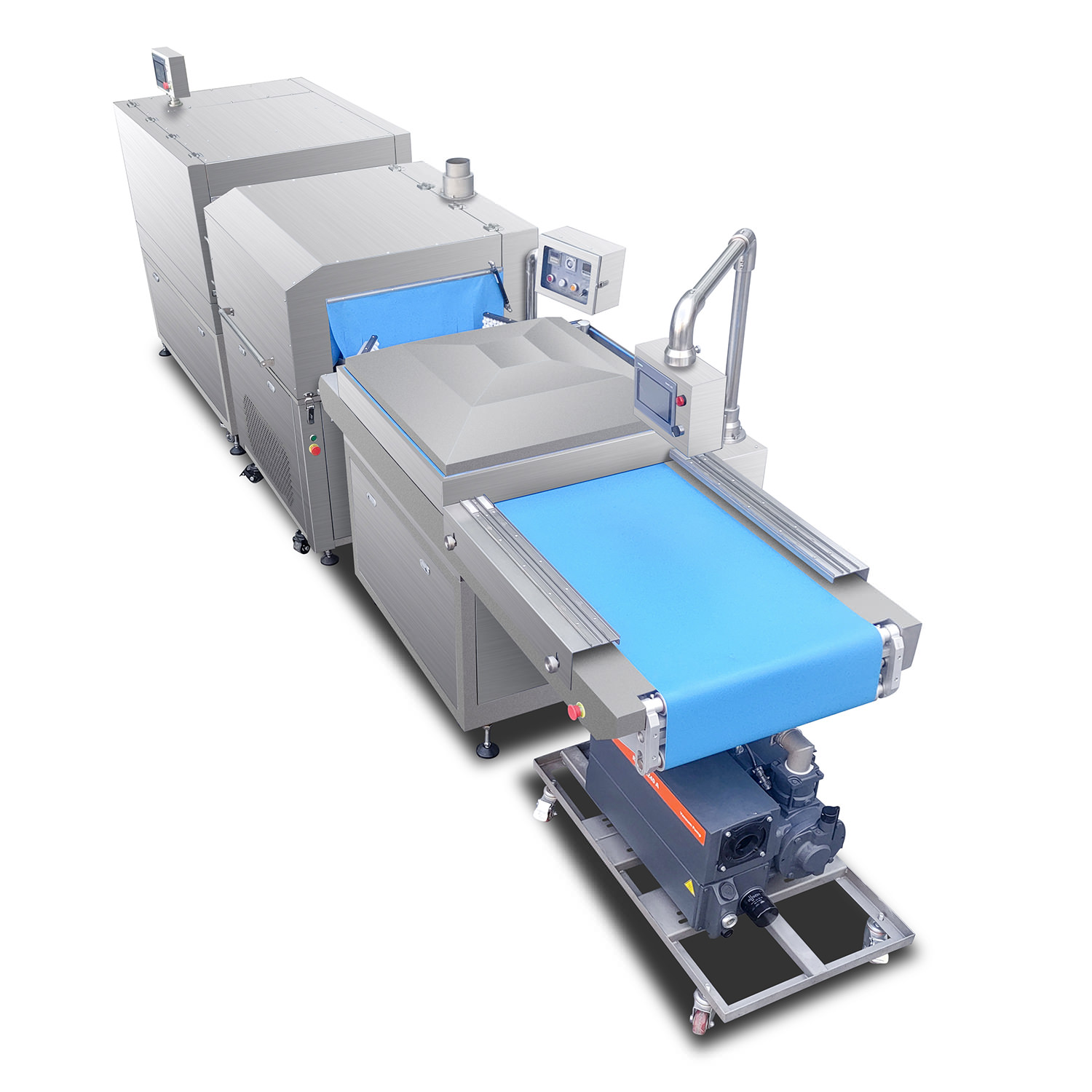

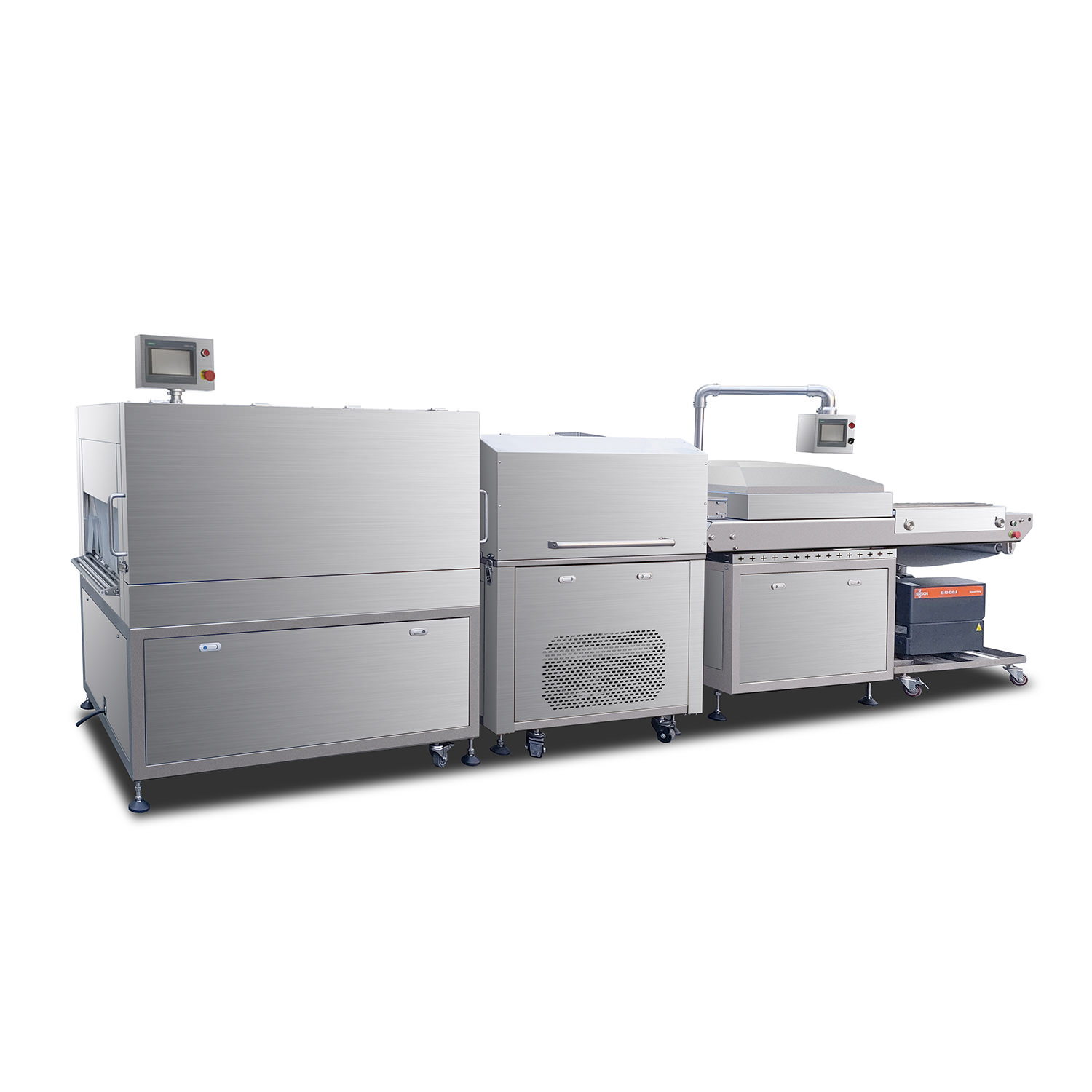

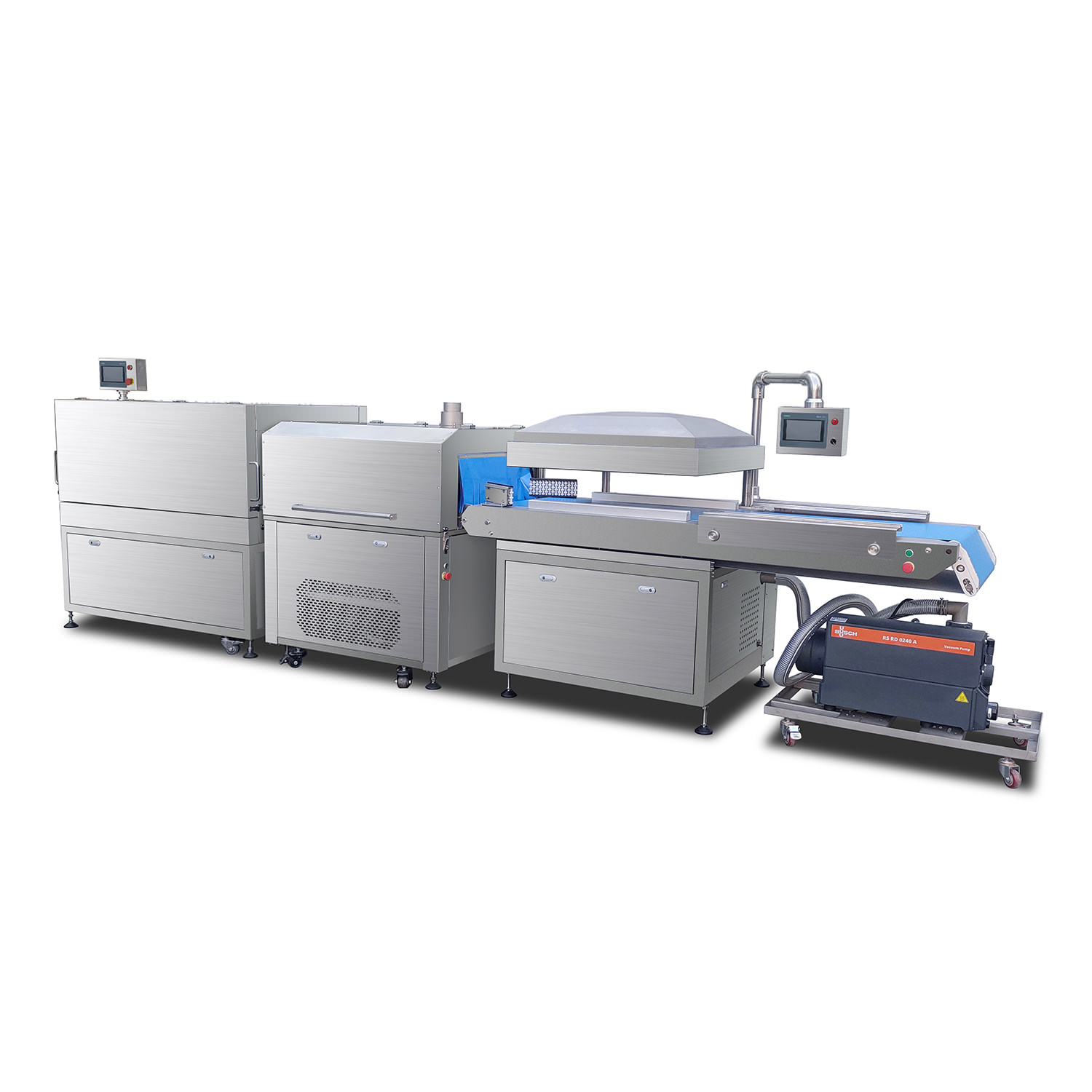

Automated Packaging Line for Meat
DongFeng builds automated meat packaging lines around the products you handle and the packs you need to deliver. A line can combine vacuum packaging, hot-water shrinking, conveying, wrapping and labeling, with the equipment selected to suit your bag sizes, available floor space and required output. Some plants need a complete packaging line; others need to connect new equipment to an existing operation. The starting point is the same: establish the packaging process, then match the machines to it.
For meat packed in shrink bags, the usual sequence is loading, vacuum sealing and hot-water shrinking, followed by the required downstream handling. The vacuum packaging station must accommodate the largest product and bag in your range, while the shrinking stage needs to suit the bag material. Conveyors link the stations and keep packs moving through the process. Wrapping and labeling can be added where required. If your packs do not need shrinking, that stage can be left out of the meat vacuum packaging line.
Good packaging line design starts with the details of a working shift. How many pack sizes will you run? How often will operators change products? Where will meat enter the line, and where will finished packs go? These details affect loading arrangements, equipment spacing and access for cleaning. The target output also needs to be checked across the whole process, including any manual work. We define which operations are automated and which still require an operator when preparing the configuration.
To discuss an automatic packaging line for your meat products, send us product photos, the size and weight range, bag specifications and the number of packs you need per hour. A workshop drawing and details of any existing machinery will help us plan the layout. With that information, DongFeng can recommend the equipment combination and prepare a quotation covering the agreed line configuration.
