Large Format Industrial Double Chamber Vacuum Packer DZQ-700/850/900/1000 2SA

Description

The DZQ-700/850/900/1000 2SA series covers large-format industrial double chamber vacuum packers with 700 to 1000 mm sealing-width configurations. These models are considered for wide bags, heavy packages and production-line projects where chamber format, pack handling and outfeed flow must be planned together.

Gas Flushing

Supports filling with protective gases such as nitrogen and carbon dioxide to replace oxygen inside the package, reducing oxidation and extending freshness. Suitable for meat, food, coffee, and other products.

Program Memory

Equipped with 6 memory buttons for quick access to customized settings, improving operation efficiency and ensuring consistent packaging results.

Custom Vacuum Chamber

The chamber size and height can be customized according to product requirements, providing more packaging space for oversized and special-shaped products.

Soft Air

Uses controlled air release to ensure smooth pressure recovery, protecting fragile, sharp, and sensitive products while improving vacuum packaging quality.

Pump Self-Cleaning Function

The automatic cleaning program removes moisture and impurities from the pump, reduces oil emulsification, maintains stable pump performance, and lowers maintenance requirements, especially suitable for high-humidity food packaging environments.

Cutting & Sealing

Adopts heat cutting technology to achieve precise cutting and reliable sealing, creating cleaner edges, better appearance, and more professional packaging results.

Pump Dust Filtration

Equipped with a dust filtration system to prevent powder particles from entering the vacuum pump, improving operating reliability and extending pump service life.

Insert Plate

Reduces the effective chamber space to speed up vacuuming while helping position products accurately for more stable sealing performance.

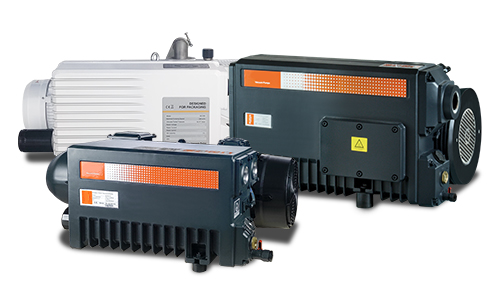

High-Quality Vacuum Pump

Equipped with a rigorously tested high-quality vacuum pump and supported by quality inspection reports, the machine ensures stable and reliable vacuum performance. Compared with ordinary low-cost pumps, our vacuum pump features a stronger structure, lower operating noise, longer service life, better continuous operation capability, and reduced performance degradation risk.

Multiple vacuum pump brands and configurations are available according to customer requirements, including international brands such as Busch for high-capacity pumps above 100 m³/h, providing flexible solutions for different applications.

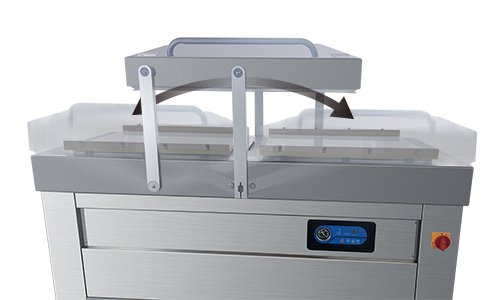

Effort-Saving Design

Through optimized mechanical structure and balanced support system, the machine significantly reduces the effort required for lid operation. It helps lower operator fatigue, improves workflow efficiency, and supports stable long-hour continuous production.

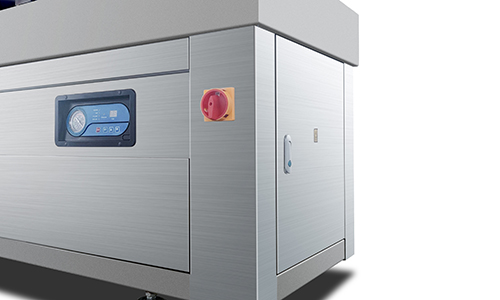

Rational Internal Layout Design

Featuring a well-organized side-mounted electrical system and dedicated maintenance access door, the machine allows quick and convenient inspection of internal components. The optimized layout simplifies maintenance procedures, improves service efficiency, and enhances long-term equipment reliability.

Large Format Industrial Double Chamber Vacuum Packer DZQ-700/850/900/1000 2SA — Model Selection & Technical Specifications

Model	DZQ-700 2SA FLAT	DZQ-850 2SA FLAT	DZQ-900 2SA DEEP	DZQ-1000 2SA FLAT
Voltage	3Phase 220/380V 50-60Hz	3Phase 220/380V 50-60Hz	3 Phase 220/380 V 50-60 Hz	3Phase 220/380V 50-60Hz
Power	3 kw	4 kw	4 kw	4 kw
Pump Capacity (Selectable)	100 m³/h (3531.5 cft/h)	200 m³/h (7062.9 cft/h)	200 m³/h (7062.9 cft/h)	200 m³/h (7062.9 cft/h)
Sealing Length	700 × 10 mm (27.6 × 0.4 in)	850 × 10 mm (33.5 × 0.4 in)	900 × 10 mm (35.4 × 0.4 in)	1000×10 mm (39.4 ×0.4 in)
Cycle time	10-30 seconds
Cover size	900 × 700 × 210 mm (35.4 × 27.6 × 8.3 in)	1050 × 830 × 210 mm (41.3 × 32.7 × 8.3 in)	1075x1080x220mm (42.3 x 42.5 x 8.7 in)	1200×880×210 mm (47.2 ×34.6 ×8.3 in)
Dimension	1760 × 810 × 1115 mm (69.3 × 31.9 × 43.9 in)	2060 × 940 × 1115 mm (81.1 × 37.0 × 43.9 in)	2145 × 1100 × 1155 mm (84.4 × 43.3 × 45.5 in)	2360×990×1115 mm (92.9 ×39.0 ×43.9 in)
Weight	≈325kg (≈716.5 lb)	≈510 kg (≈1124.4 lb)	≈550 kg (≈1212.5 lb)	≈625 kg (≈1377.9 lb)
Material	304 Stainless Steel
Warranty	1 Year
Certification	CE / ISO
Vacuum Accuracy	99.8%
Large Vacuum Pump	1666.7L/min	3333.3L/min	3333.3L/min	3333.3L/min
Ultimate Vacuum Pressure	0.2Kpa	0.2Kpa	0.2Kpa	0.2Kpa

Heavy-Duty Capacity for Large-Format Packaging

The DZQ-700/850/900/1000 2SA is a heavy duty vacuum sealer built around genuinely large chambers: 210 mm chamber height and seal bars from 700 to 1000 mm take whole-muscle meat, large cheese wheels, and oversized retail packs. For buyers comparing a large commercial vacuum sealer or a large chamber vacuum sealer for bulky products, the range offers four frame sizes with 100–300 m³/h pumps — and the 1000 mm model is among the largest vacuum sealer chambers available on a double-chamber line.

As a heavy duty commercial vacuum sealer rated for 12 hours of continuous running, it is available with a flat chamber for standard bags or a deep chamber for high-profile items — a double chamber vacuum packer with deep chamber option that few machines in this class offer. The mechanical lid-assist design needs no compressed air, and the optional insert plate adapts the chamber floor for smaller batches, making the series a flexible heavy-duty vacuum packer for high-output lines and large format packaging across meat, seafood, and industrial goods.

For powder handling and high-automation packaging, see DZQ-850 2SE with its automatic lid, PLC and touch-screen control — the high-spec partner to the 2SA heavy-duty range.
