Industrial Chamber Vacuum Sealer DZQ-600B3 – DongFeng

Description

DZQ-600B3 is an industrial single-chamber vacuum sealer with a wide 760 x 628 x 120 mm chamber for suitable wide, flatter pack formats. It uses three sealing bars: one 600 x 10 mm bar and two 510 x 10 mm bars. The listed pump configuration is two 20 m3/h pumps or a 100 m3/h option, with a 10-30 second cycle time.

Stainless Steel Lid (Customizable)

Optional high-strength stainless steel lid designed for long-term industrial use, improving lid stability, durability, and overall equipment reliability.

Easy Mobility

Equipped with heavy-duty casters and a compact design, the machine can be easily moved and positioned according to production needs. Lockable casters provide flexible mobility while ensuring stable operation.

Double Sealing

Features a double sealing structure to enhance sealing strength, especially for oily products. It reduces air leakage risk and ensures reliable sealing during storage and transportation.

Heat Cutting

Uses heat cutting technology to remove excess bag edges, achieving precise cutting and secure sealing for cleaner, neater, and more professional packaging results.

Acrylic Color Options

Available in brown, light blue, and transparent acrylic options, providing clear visibility during packaging while enhancing the machine’s appearance and premium feel.

Program Memory

Equipped with 6 memory programs for quick access to different packaging settings, reducing repeated adjustments and improving efficiency and consistency.

Soft Air

Uses controlled slow air release to ensure smooth pressure recovery, preventing sharp parts such as bones from damaging the bag while protecting delicate and soft-packaged products.

Gas Flushing

Fills the package with protective gases such as nitrogen and carbon dioxide to replace oxygen, reducing oxidation and preventing excessive compression or product sticking under vacuum conditions.

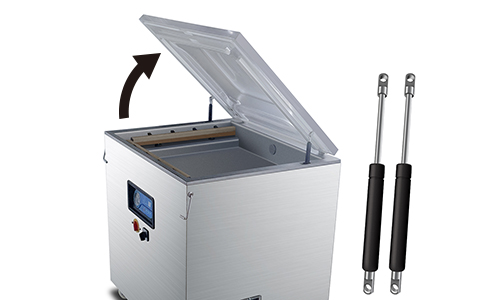

Automatic Lid Opening System

The automatic lid opening function reduces manual operation intensity and improves production efficiency. After each packaging cycle, the lid opens automatically, enabling faster product handling and smoother continuous operation.

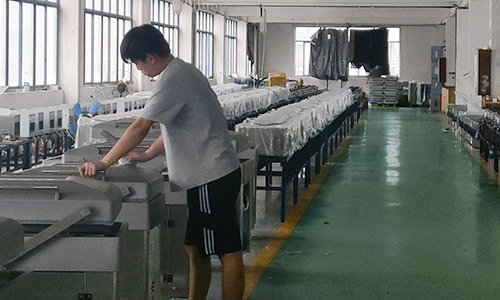

Durability Testing

Before shipment, every machine undergoes an 8-hour continuous operation test to ensure reliable performance and quality. The test covers vacuum pump noise levels, motor and electrical component temperature, ultimate vacuum performance, heating system stability, sealing consistency, and control system response speed. This strict inspection process ensures that every unit is delivered in excellent working condition with no quality issues.

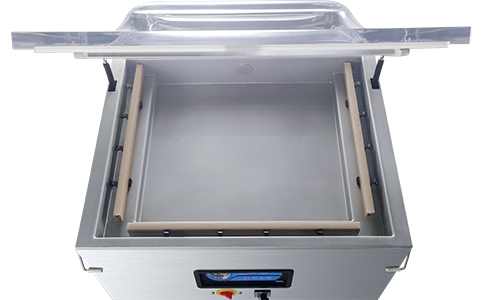

Customizable Vacuum Chamber

Designed according to different product sizes, shapes, and packaging requirements, the machine supports customized vacuum chamber solutions to accommodate various product specifications. This improves equipment versatility, packaging efficiency, and application flexibility.

Industrial Chamber Vacuum Sealer DZQ-600B3 – DongFeng — Model Selection & Technical Specifications

Model	DZQ-600B3
Voltage	1phase 110/220V 50-60Hz 3Phase 220/380V 50-60Hz
Power	1.8 kw
Pump Capacity	20 m³/h × 2 or 100 m³/h (706.3 cft/h × 2 or 3531.5 cft/h)
Sealing Length	Three sealing bars: 1 × 600 × 10 mm + 2 × 510 × 10 mm
Cycle time	10-30 seconds
Dimension	885 × 720 × 975 mm (34.8 × 28.3 × 38.4 in)
Vacuum Chamber Size	760 × 628 × 120 mm (29.9 × 24.7 × 4.7 in)
Weight	≈165 kg (≈363.8 lb)
Vacuum Level	≈-0.1MPa
Warranty	1 Year
Certification	CE / UKCA / ISO / ISO 9001
Usage	Food / Industrial / Electronics Packaging
Customization	Available OEM / ODM
