Description
The DZQ-400, DZQ-500, DZQ-600 and DZQ-800 are vertical single-chamber vacuum sealers selected by sealing length, chamber size and pump configuration. Choose the model around your largest bag opening, product footprint and required output.
Gas Flushing
Supports filling with protective gases such as nitrogen and carbon dioxide to replace oxygen inside the package, reducing oxidation and extending freshness. Suitable for meat, food, coffee, and other products.
Program Memory
Equipped with 6 memory buttons for quick access to customized settings, improving operation efficiency and ensuring consistent packaging results.
Acrylic Lid
Available in brown, light blue, and transparent acrylic options to provide clear visibility during packaging while enhancing the machine’s appearance and premium feel.
Soft Air
Uses controlled air release to ensure smooth pressure recovery, protecting fragile, sharp, and sensitive products while improving vacuum packaging quality.
Language Customization
Supports multi-language interface customization, allowing different languages to be configured according to customer requirements for convenient operation worldwide.
Cutting & Sealing
Adopts heat cutting technology to achieve precise cutting and reliable sealing, creating cleaner edges, better appearance, and more professional packaging results.
Easy Mobility
Equipped with heavy-duty casters and a compact design, the machine can be easily moved and positioned according to production needs. Lockable casters ensure both mobility and stable operation.
Triple Sealing Bars
Equipped with a triple sealing structure, it enhances sealing strength and airtightness, ensuring stable and reliable sealing performance for different packaging materials and demanding applications.

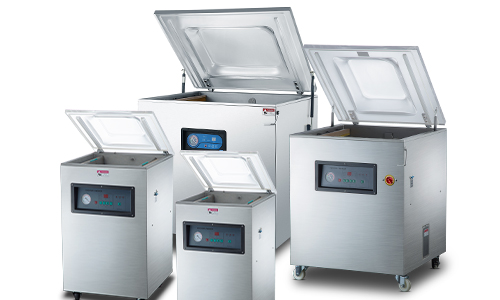

Flexible Size Selection
Offering multiple chamber dimensions and vacuum speed configurations within the same model, the machine can be easily matched to various product sizes and packaging needs, providing greater flexibility and application versatility.

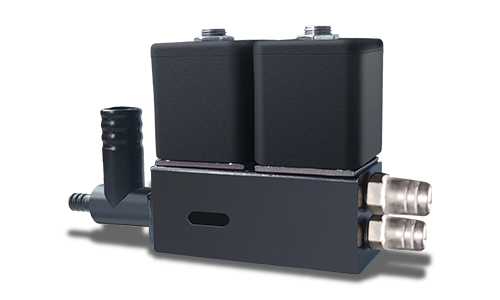

High-Quality Solenoid Valve
The premium solenoid valve delivers rapid switching response, high sealing reliability, and stable vacuum control. It minimizes air leakage, improves machine efficiency, and supports continuous high-frequency operation for long-term durability.
Continuous Operation
Featuring a high-efficiency pure copper vacuum pump, reliable pure copper transformer, durable nickel alloy heating system, and optimized heat dissipation design, the machine delivers stable performance during extended operation. Proven through practical testing, it supports 12-hour daily intensive production, maximizing productivity while minimizing maintenance and downtime.
Vertical Single Chamber Vacuum Sealer DZQ-400 to 800 — Model Selection & Technical Specifications
|
Model
|
 DZQ-400
|
 DZQ-500
|
 DZQ-600
|
 DZQ-800
|
|
|---|---|---|---|---|---|
| Voltage | 110V/220V 50Hz-60Hz | 110V/220V 50Hz-60Hz | 110V/220V 50Hz-60Hz | 1-phase 110-220V 50/60Hz 3-phase 220-380V 50/60Hz |
|
| Power | 0.9kw | 0.9KW | 1.8kw | 1-phase 0.9kw/1.8kw 3-phase 2.2kw/3kw |
|
| Pump Capacity | 20 m³/h (706.2 cft/h) |
20 m³/h
(706.3 cft/h) |
20 m³/h× 2pcs
(706.3 cft/h× 2pcs) |
20 m³/h×2 pcs or 100 m³/h (706.3 cft/h×2 pcs or 3531.5 cft/h) |
|
| Sealing Length | 400×10 mm (15.7×0.4 in) |
500×10mm
(19.7 × 0.4 in) |
600×10 mm
(23.6 × 0.4 in) |
800 × 10 mm (31.5 × 0.4 in） |
|
| Cycle time | 10-30 seconds | 10-30 seconds | 10-30 seconds | 10-30 seconds | |
| Machine Size | 490×540×945 mm (19.3×21.3×37.2 in) |
585×650×970mm
(23.0 × 25.6 × 38.2 in) |
740×710×975 mm
(29.1 × 28.0 × 38.4 in) |
940 × 720 × 975 mm (37 × 28× 38.4 in) |
|
| Vacuum Chamber Size | 435×420×75 mm (17.1×16.5×3.0 in) |
530×530×75mm
(20.9 × 20.9 × 3.0 in) |
630×626×95 mm
(24.8 × 24.6 × 3.7 in) |
825 × 635 × 100 mm (32.5 × 25.0 × 3.9 in) |
|
| Weight | ≈80 kg (≈176.4 lb) |
≈105kg
(≈231.5 lb) |
≈145 kg
(≈ 319.7 lb) |
≈175 kg (≈385.8 lb) |
|
| Material | Stainless Steel | ||||
| Vacuum Level | -0.1MPa | ||||
| Warranty | 1 Year | ||||
| Certification | CE / ISO | ||||
| Usage | Food / Industrial / Electronics Packaging | ||||
| Customization | Available OEM / ODM | ||||
As a vertical single chamber vacuum sealer, the DZQ series pulls vacuum inside a sealed chamber instead of from the bag mouth, keeping residual oxygen low for longer shelf life on meat, seafood, coffee and prepared foods.
Frequently Asked Questions
01How do I choose between DZQ-400, 500, 600 and 800?
02Which models use dual vacuum pumps?
03What is the largest sealing length?
04Is DZQ-800 always the best choice?
05How does this series differ from DZQ-600L?
Select the correct DZQ vertical model
Start with required sealing width, then confirm the packed product fits the listed chamber dimensions and choose the pump configuration for your production workflow.
- DZQ-400: 400 x 10 mm seal; 435 x 420 x 75 mm chamber; 20 m3/h pump.
- DZQ-500: 500 x 10 mm seal; 530 x 530 x 75 mm chamber; 20 m3/h pump.
- DZQ-600: 600 x 10 mm seal; 630 x 626 x 95 mm chamber; 20 m3/h x 2.
- DZQ-800: 800 x 10 mm seal; 825 x 635 x 100 mm chamber; 20 m3/h x 2 or 100 m3/h option.
